Strojna obrada

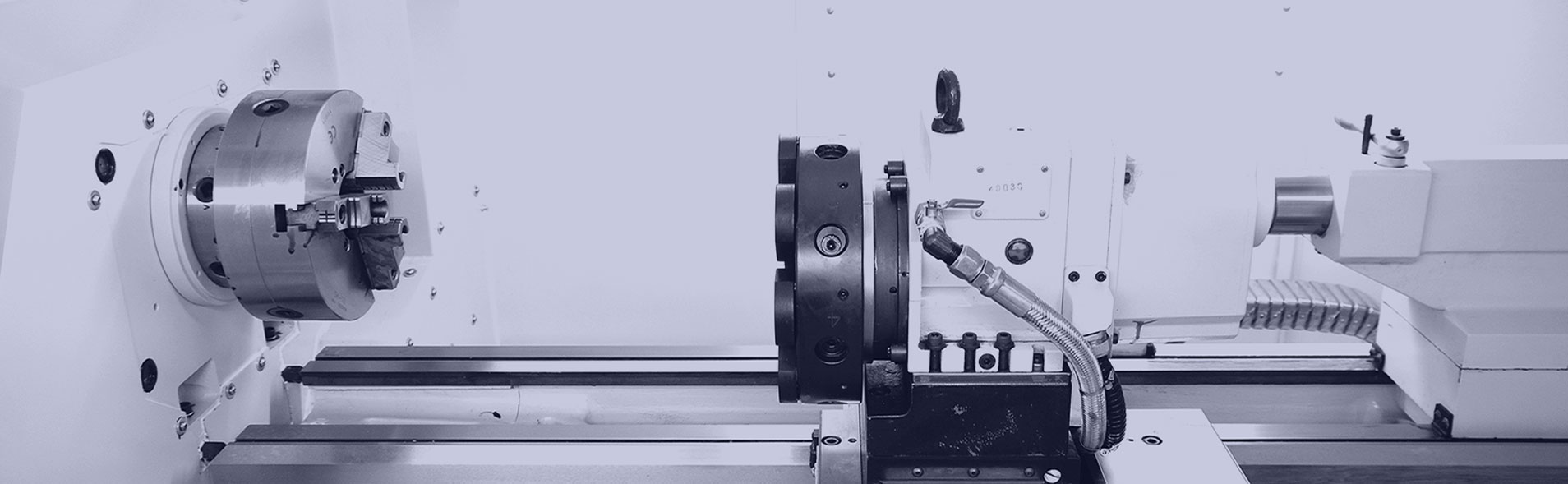

Tokarenje je proces strojne obrade kod kojega se rezni alat kreće više – manje linearno, dok obradak rotira.
Tokariti se može s vanjske ili unutarnje strane cilindra (poznato i kao bušenje) radi izrade cjevastih komponenti raznih geometrija.
Metal element d.o.o., nudi širok raspon usluga i proizvoda.

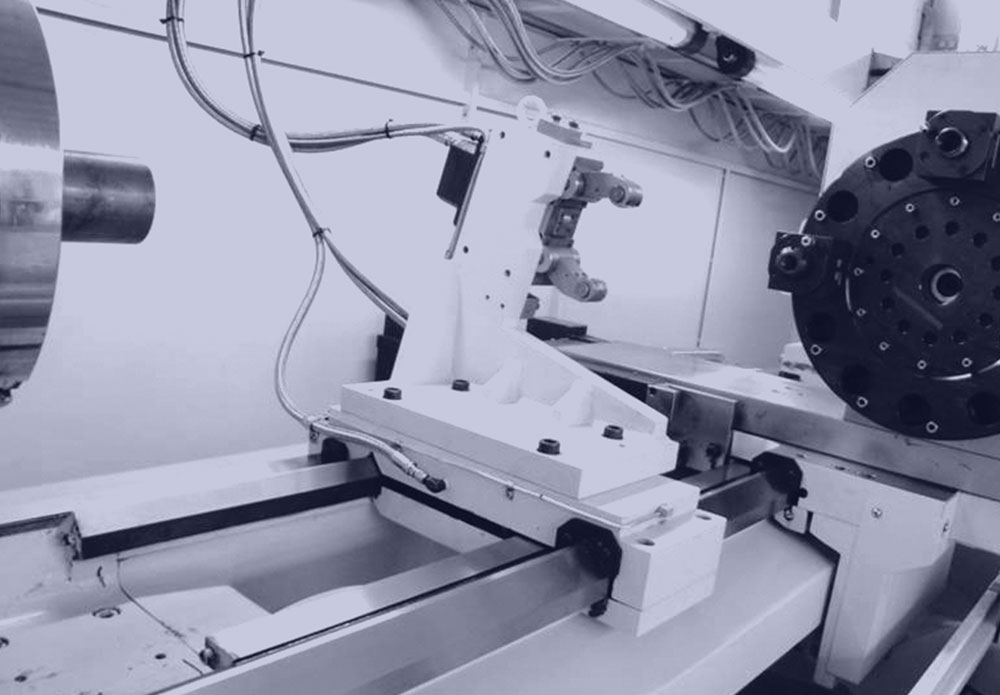

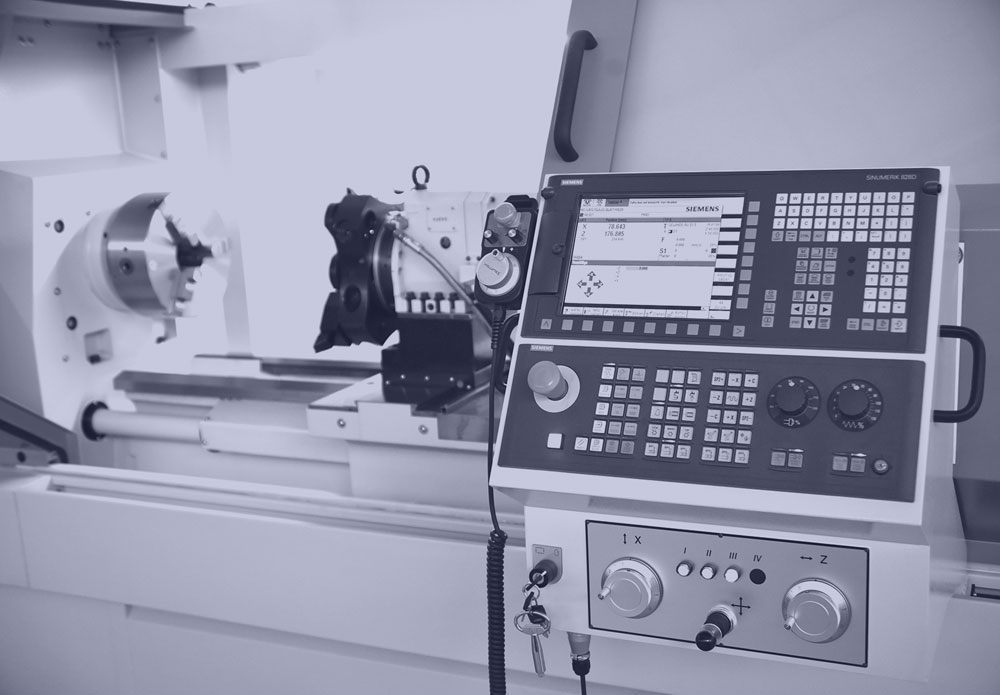

Wagner WDC 560
| Max. Turning Øabove sealevel. Bed, mm | 560 |
| Max. Turning Ø over Cross slide, mm | 390 |
| Max. Turning-Øin the bridge, mm | 810 |
| Max. distance betweencenters | 1000/1500/2000/3000 |
| Spindle nose, D "Camlock" size | 8 |
| Spindle bore, mm | 80 |
| Spindle speedrange | mit 3 autom. Stufen, min-1 20 - 2400 |
| Bed width, mm | 345 |
| Quill, mm | 180 |
| Tailstock quillcone | MK 5 |
| TailstockQuill-Ø, mm | 75 |
| Engine power AC FAGOR / SIEMENS: | 7,5(WDC 560 x 3000 11) / 9 |
| Rapid Z axis, mm/min: | 7000 |
| Rapid X axis, mm/min: | 5000 |
| Repeat accuracy, mm+/- | 0,005 / 300 |
| Positioning accuracy, mm +/- | 0,01 / 300 |

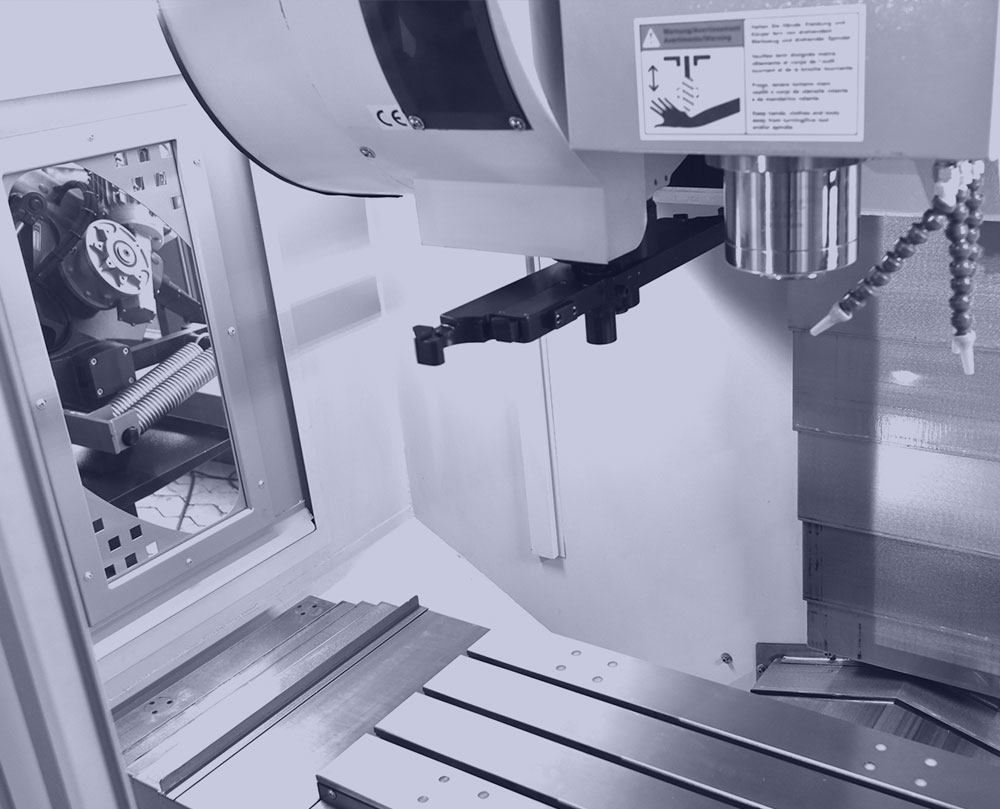

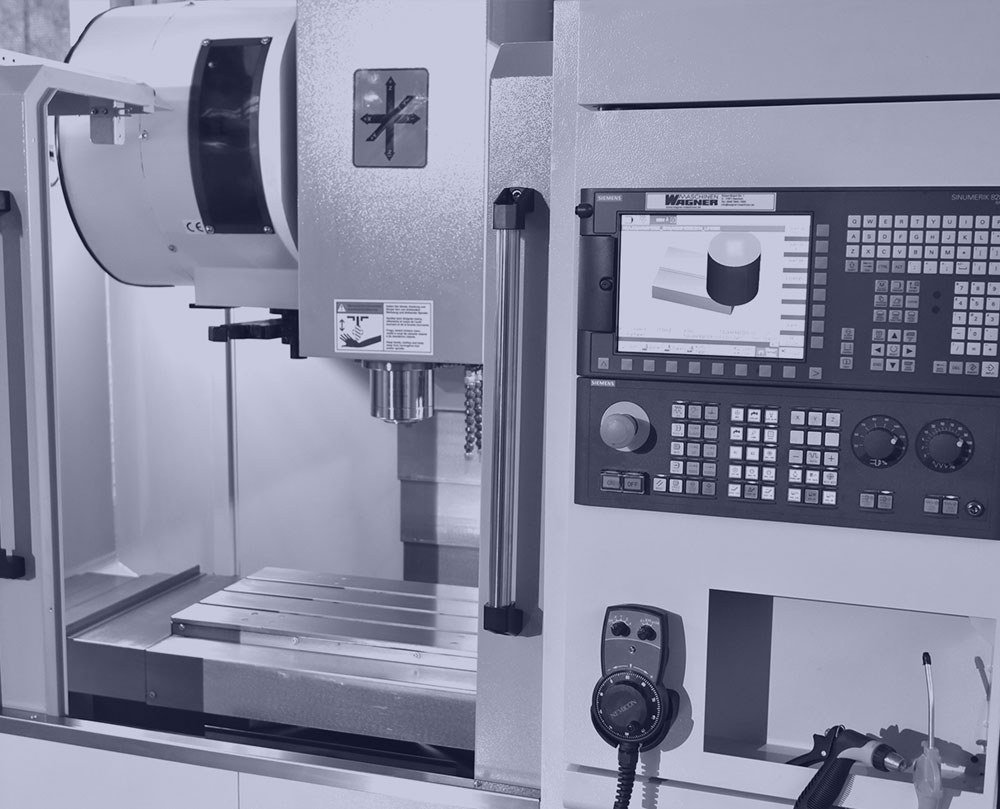

Wagner WMC 600R
| Clamping surface, mm | 800 x 400 |
| T - slots, mm | 3 x 14 |
| Table load, kg | 300 |
| Travel X / Y / Z, mm | 600 / 400/ 450 |
| Spindle nose - table, mm | 100 - 550 |
| Spindle center - column, mm | 450 |
| Spindle speed, stepless, rpm. |
SK 40: 80 - 10.000 |
| Number of magazine locations | 16 |
| Tool Ø, max., Mm | 89 |
| Tool weight, max., kg | 7 |
| Tool change time, sec. | 2 |
| Chip - to - chip, sec. | 7 |
| Feed range X / Y / Z, m/min. | 10.000 |
| Rapid traverse X / Y / Z, m / min. | 24.000 |
| Repeatability, mm | +/- 0,007 |
| Positioning accuracy, mm | +/- 0,010 |
| Cross guides | 2 |
| Dimensions (LxWxH), mm | 1900 x 1700 x 2240 |
| Machine weight, approx. Kg | 3500 |
